2 x MAX3232 Mini RS232 – TTL – UART module
|Need more than we have? Order now, we will ship when back in stock. Lead time about 2-3 weeks.
See our backorder policy.
|Discount Type||Quantity||Volume Price|
|Quantity||3 - 9||5% $2.52|
|Quantity||10 - 24||9% $2.41|
|Quantity||25 +||12% $2.33|
- Additional information

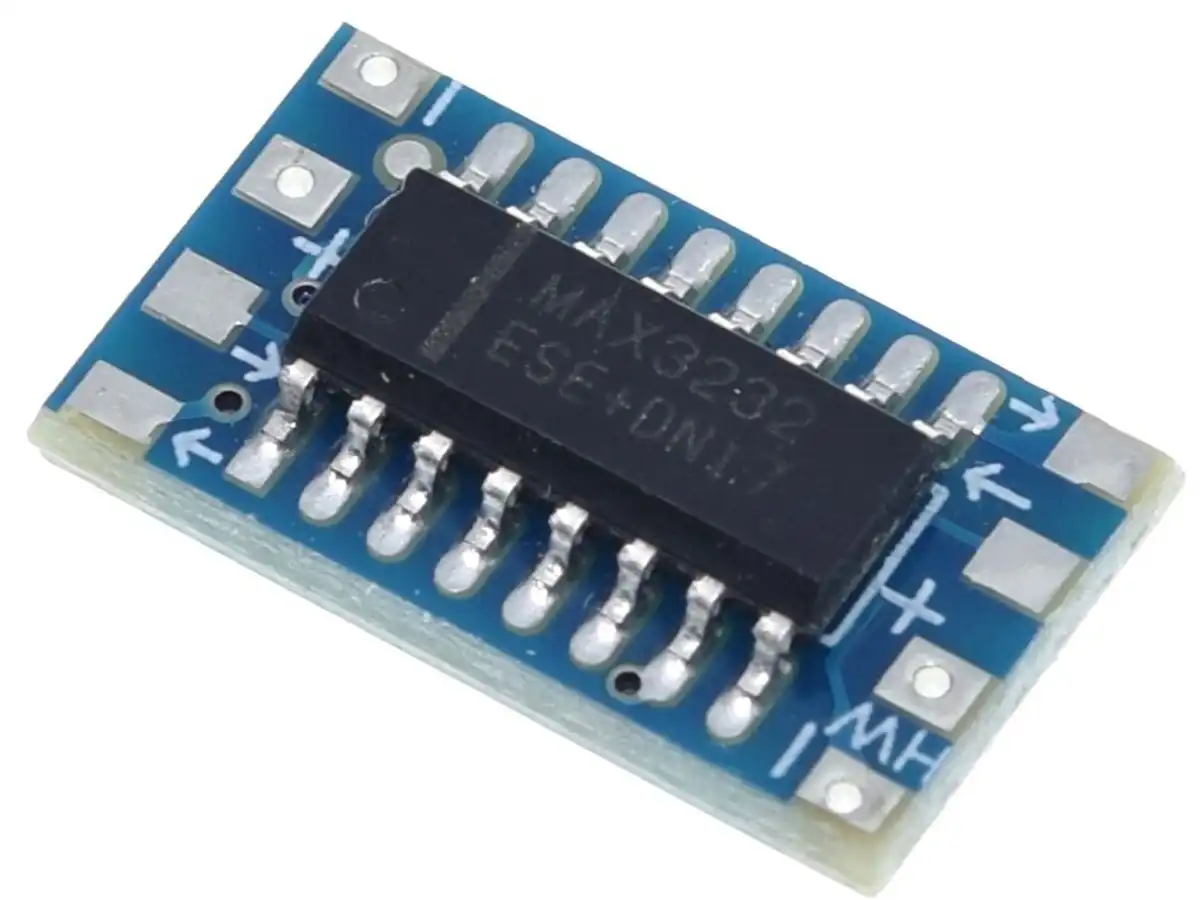

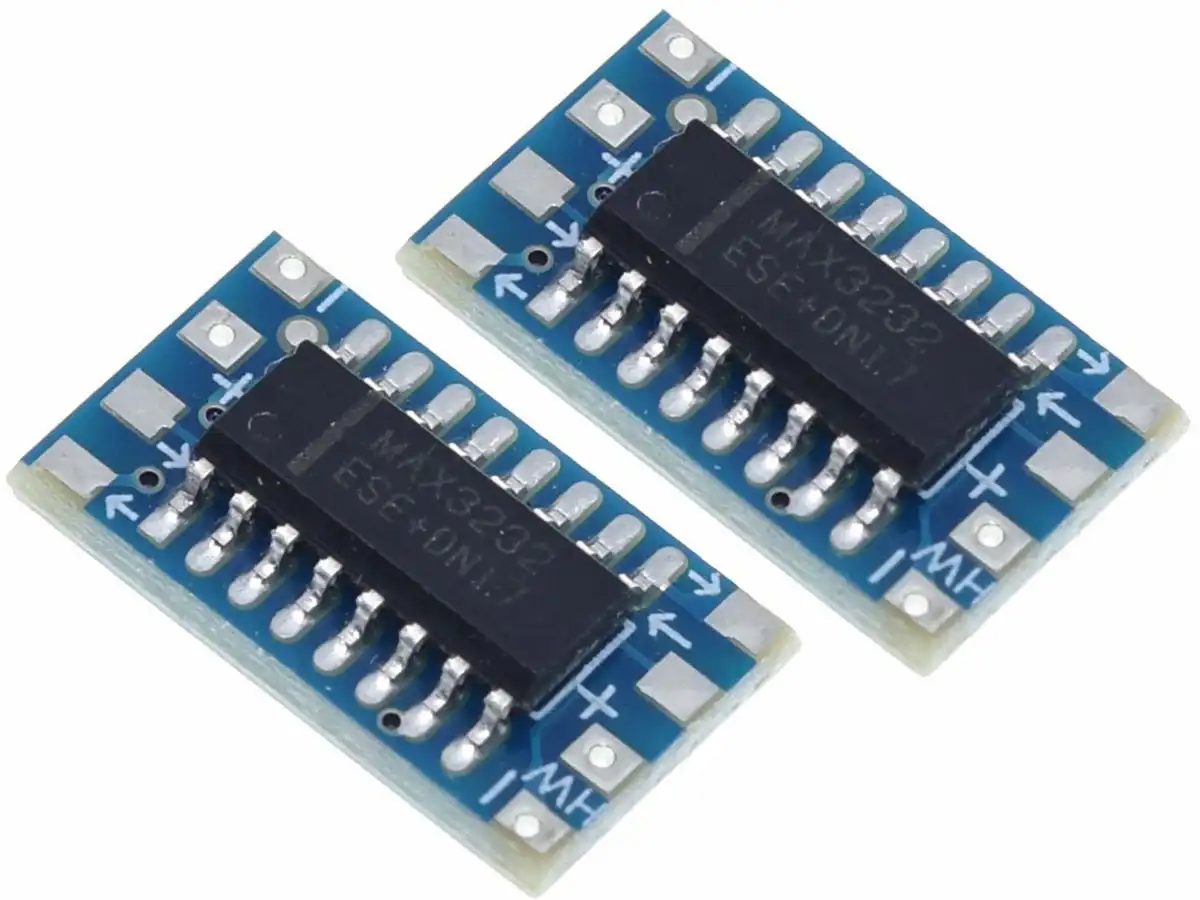

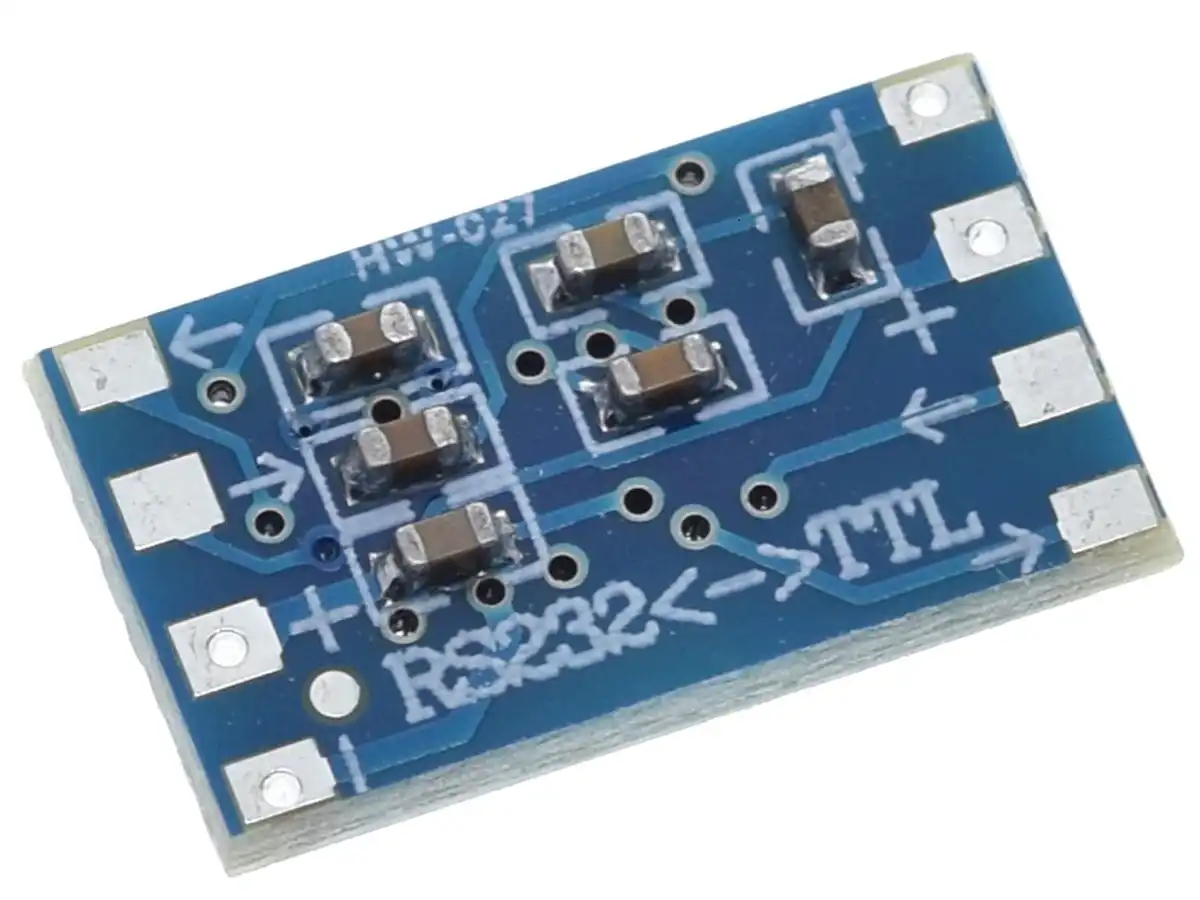

2 pieces TTL to RS232 UART Mini Module with MAX3232 compatible interface chip.
Power supply and TTL voltage level 3.3 or 5V.
RS232 voltage level of -5 to -15V and +5 to +15V.
• Operates with 3 to 5.5V supply voltage
• Operates up to 250 kbit/s
• Low supply current: 300 μA Typical
• Accepts 5V logic input with 3.3V supply voltage
• Dimension <16 x <10 mm
The MAX3232 device consists of a pair of line drivers and receivers, and a charge-pump circuit for the RS232 output level. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector.
|Dimensions||40 × 20 × 10 mm|
