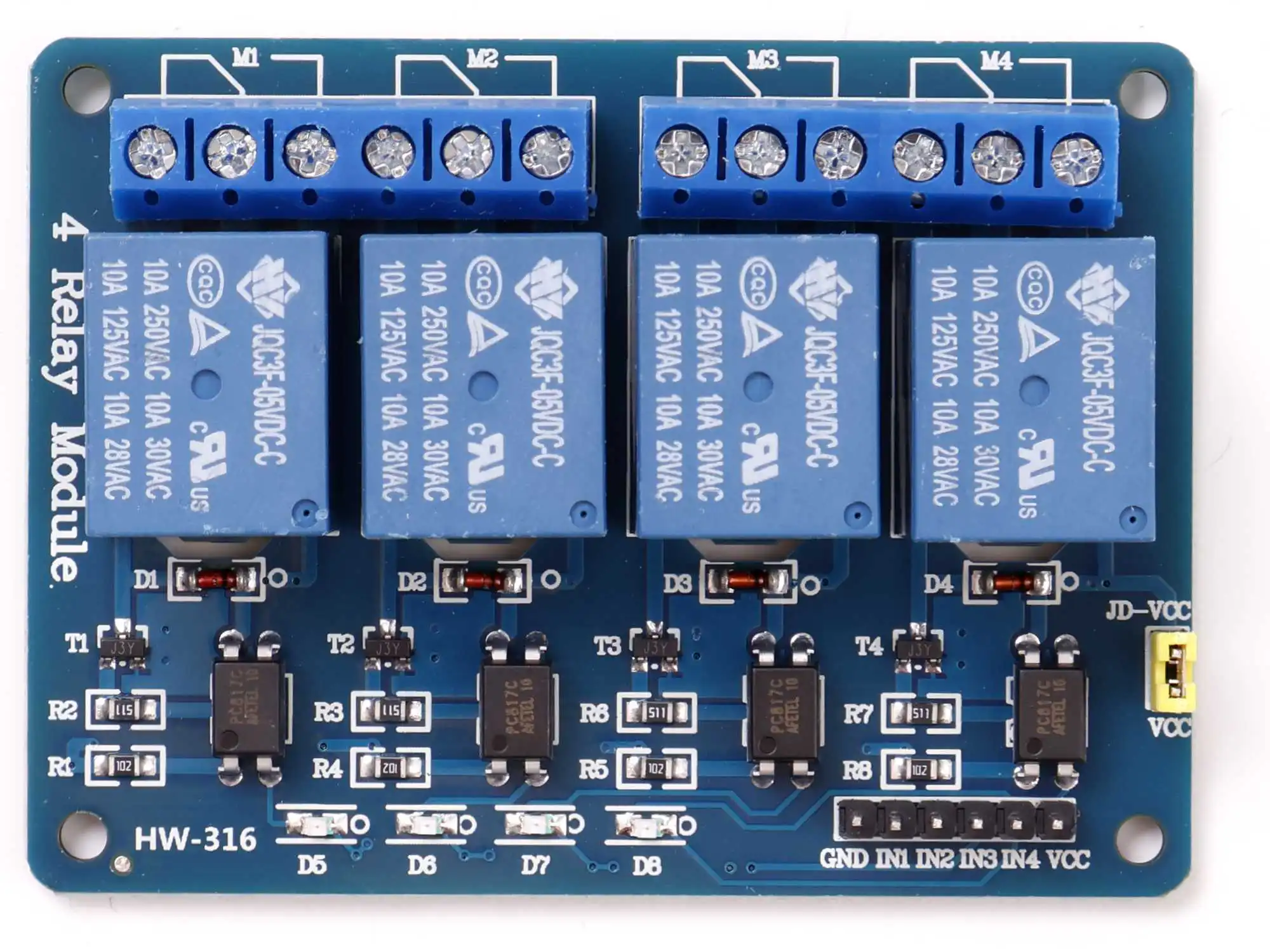

4 Relay Module 10A / 250V Opto-Isolated Inputs 3-24V for Arduino etc.
Not enough stock? Order now, get it later.
Click HERE to find out how it works.
|Discount Type||Quantity||Volume Price|
|Quantity||3 - 9||5% C$ 4.70|
|Quantity||10 - 24||9% C$ 4.50|
|Quantity||25 +||12% C$ 4.36|
- Additional information
- Reviews (0)
This relay board needs a power supply of 5VDC. The opto-insulated inputs can handle 3-24VDC control voltage, with a maximum input current of 22mA at 24VDC. A jumper can switch between 2 modes: If the jumper cap is set to VCC and JD-VCC, relays and opto inputs are using the same 5VDC power supply. If the jumper is open, a separated 5VDC power supply can drive the relays and the inputs are open for voltages up to 24VDC. The inputs are LOW-active. It means the output of a microcontroller (like Arduino or Raspberry) draws the input current to GND. The LOW level activates the relay, and a high level (or 3-state level) deactivates the relay.
Other relay modules with 1 relay, 2 relays and 8 relays are also available.
High-Current relay modules (30A) are available as well.
Finally, we offer relay modules for the ESP-01 IoT module, WeMos D1 Mini, remote-controlled relays, and a WiFi 4-Channel relay DIY kit.
