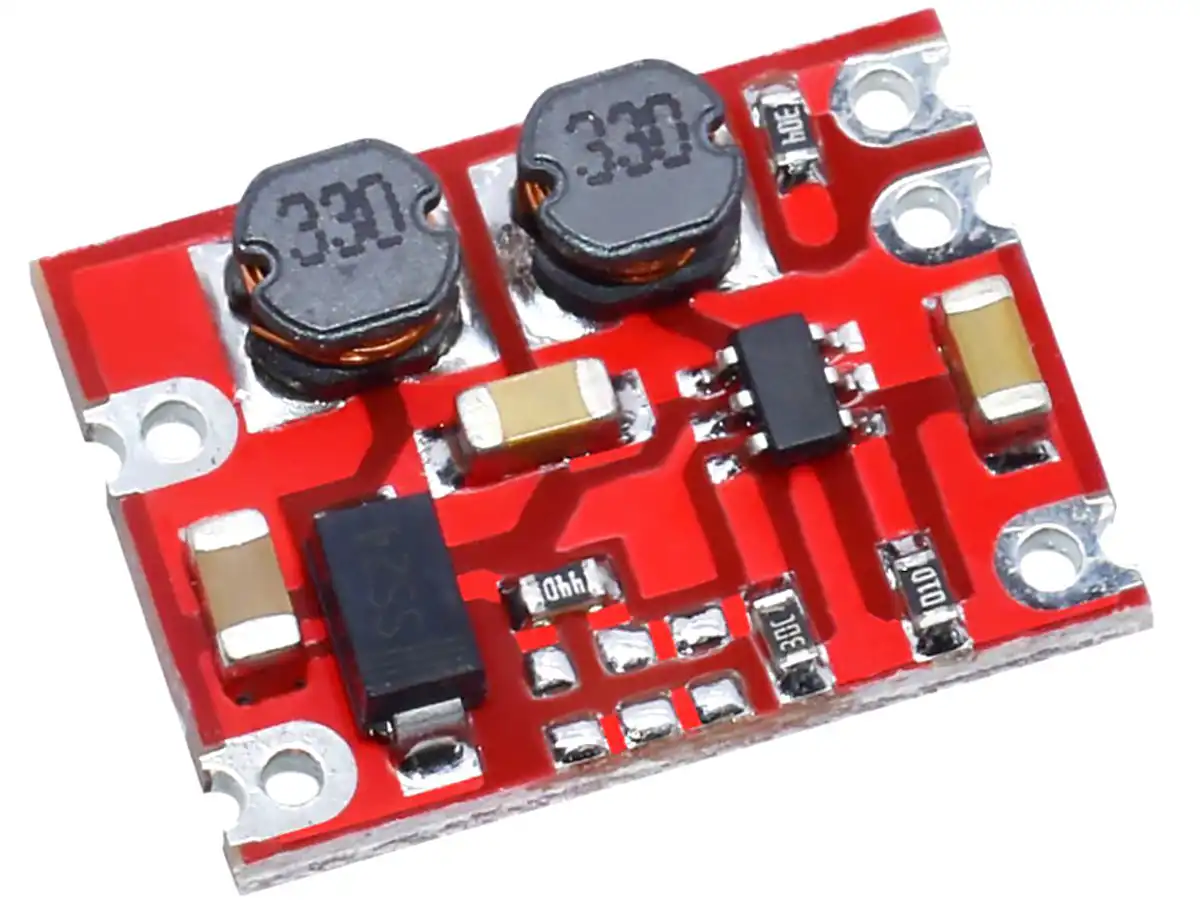

Mini DC-DC automatic buck/boost SEPIC converter 5V 600mA
C$ 3.90
Can not be backordered when on sale.
| Quantity | 3 - 9 | C$ 3.61 |
| Quantity | 10 - 24 | C$ 3.41 |
| Quantity | 25 + | C$ 3.32 |
- Description
- Additional information
- Reviews (0)
Description
This brand new module is 19 x 14mm small and delivers 5V and up to 600mA output power from an input voltage of 3-15V.
Whenever you need a voltage converter to supply 5V to your project from different power sources like a single lithium cell or a 9V battery, this converter is the solution. As long the input voltage (cell voltage) is higher than 3V, the converter will deliver a stable 5V output voltage.
The switching frequency is with its 1.2MHz very high which makes a design with small components possible.
Pro tip: The output voltage is defined by a resistor voltage divider in the feedback circuit, and can be adjusted by changing the resistor values.
The EN pin (enable) can be tied to the input voltage or controlled by a switch or a logic output from another device.
Quiescence current: 0.2mA
Input voltage: 3-15V DC
Output voltage: 5V
Output current: 600mA
Dimensions: 19 x 14mm
Additional information
| EAN | 4260474037230 |
|---|---|
| Manufacturer | UNIVERSAL-SOLDER |
| Brand | CANADUINO |
