Description

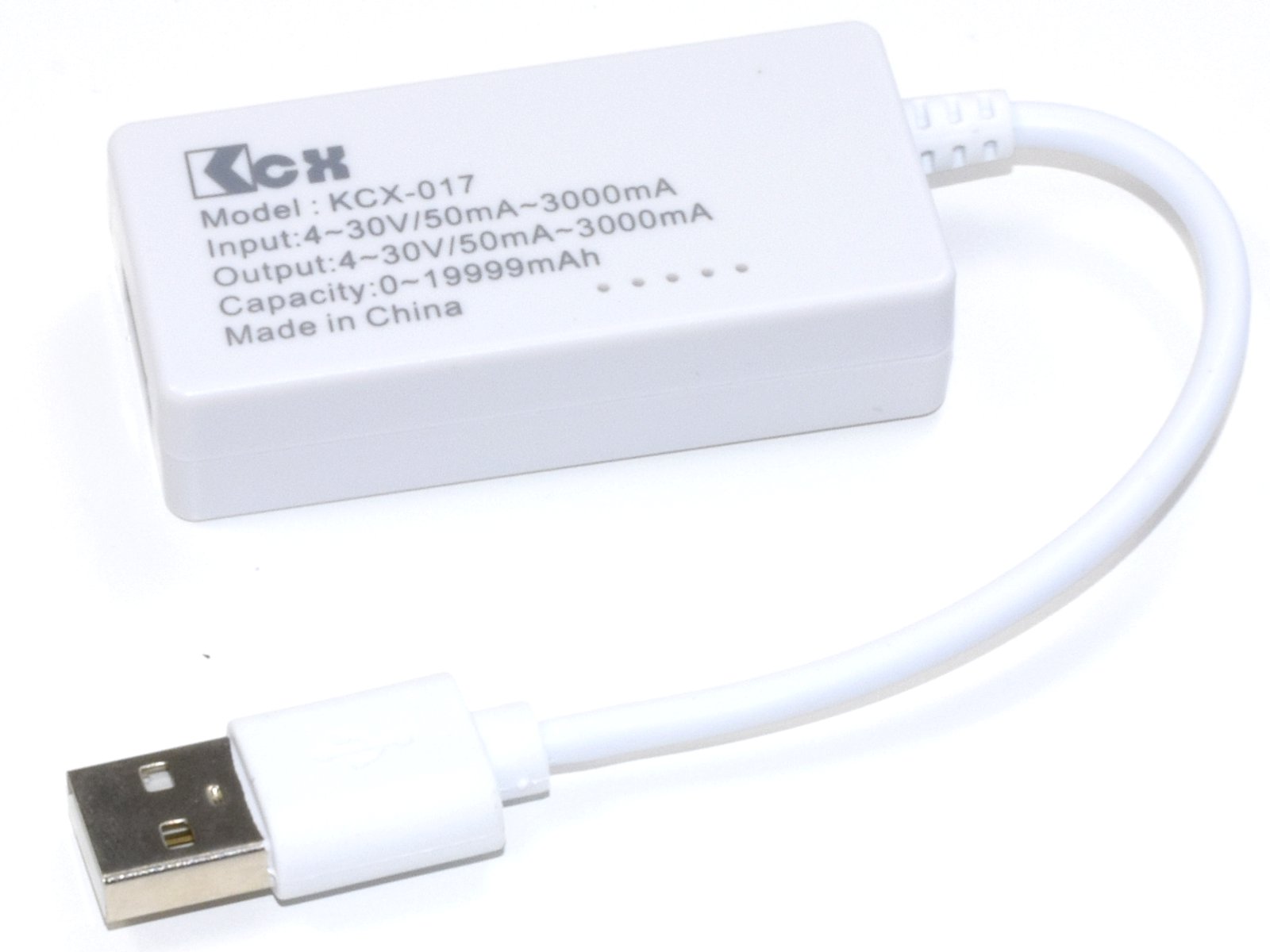

USB 3.0 Tester for Voltage Capacity Current KCX-017 4-30V max. 3A. USB tester with LCD, calibration function and memory for up to 10 measurements.

Input voltage: 4-30V

Voltage resolution: 0.01V

Test current: 0-3A

Current resolution: 0.01A

Capacity range: 0-19999mAH

Accuracy: about 1%

Internal resistance: about 0.1 Ohm

Recalling of stored data: Double-click the button and the backlight will flash. To exit this mode, double-click again.

Clearing stored data: Press and hold the button.

Voltage warning: If the voltage is too high or too low, the backlight of the USB 3.0 Tester will flicker.

Additional information

Weight 0.02 kg
Dimensions 100 × 80 × 19 mm
Brand

CANADUINO
Manufacturer

UNIVERSAL-SOLDER
EAN

4260474036622
