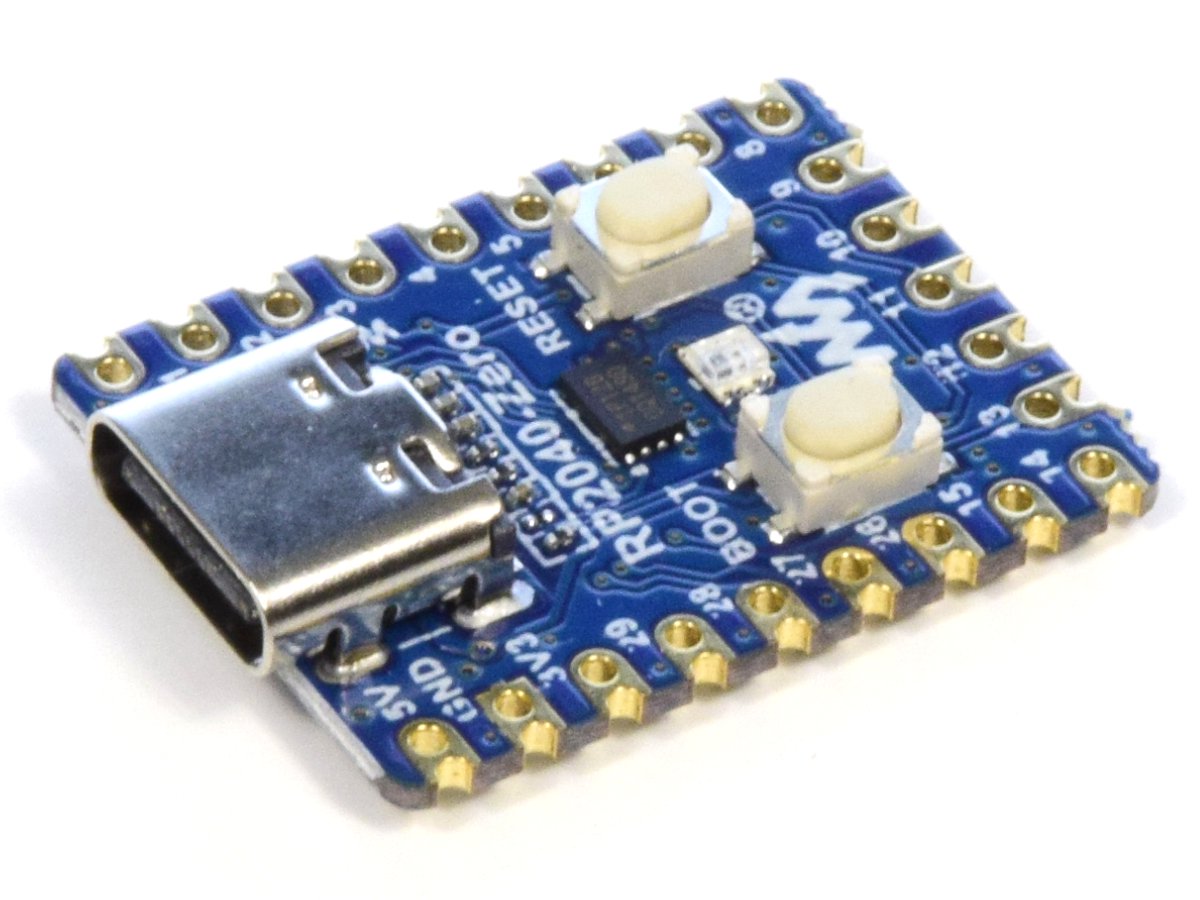

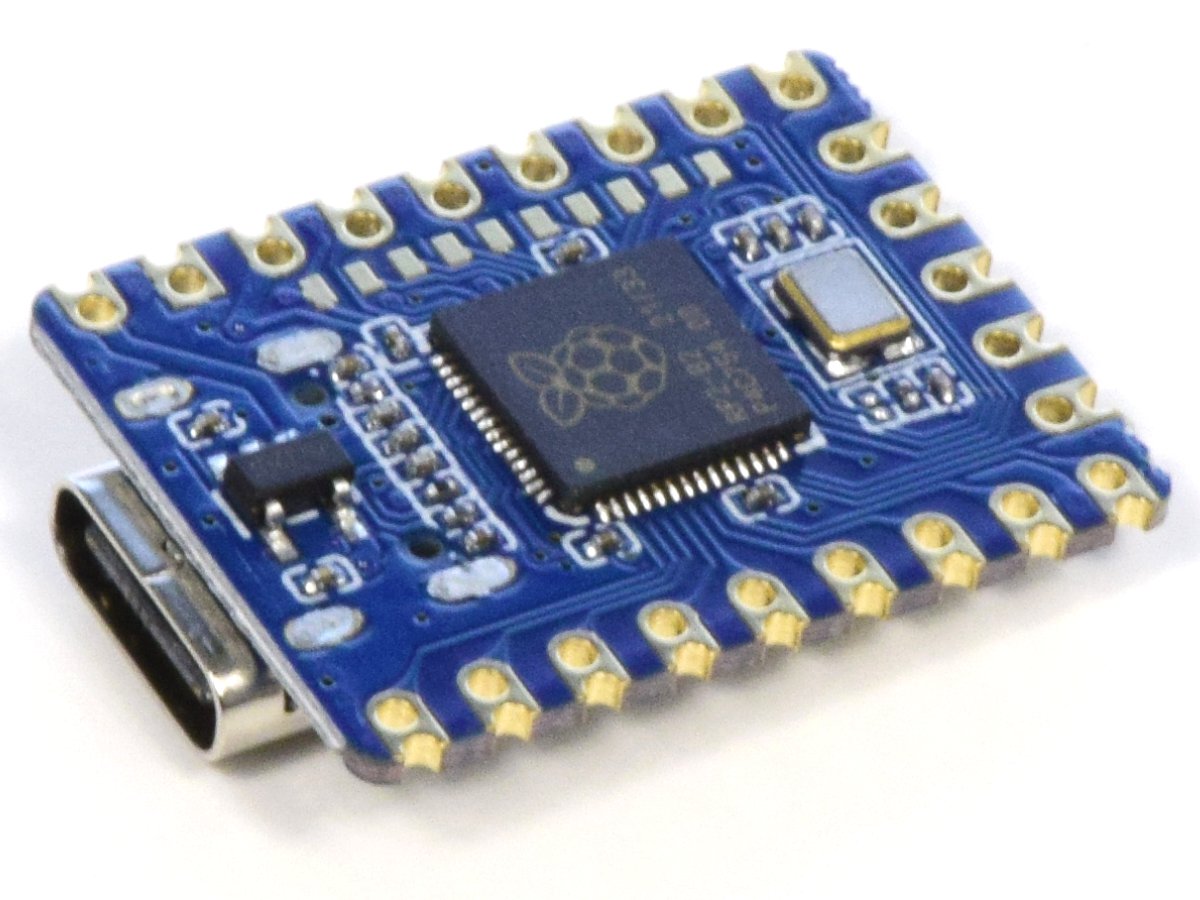

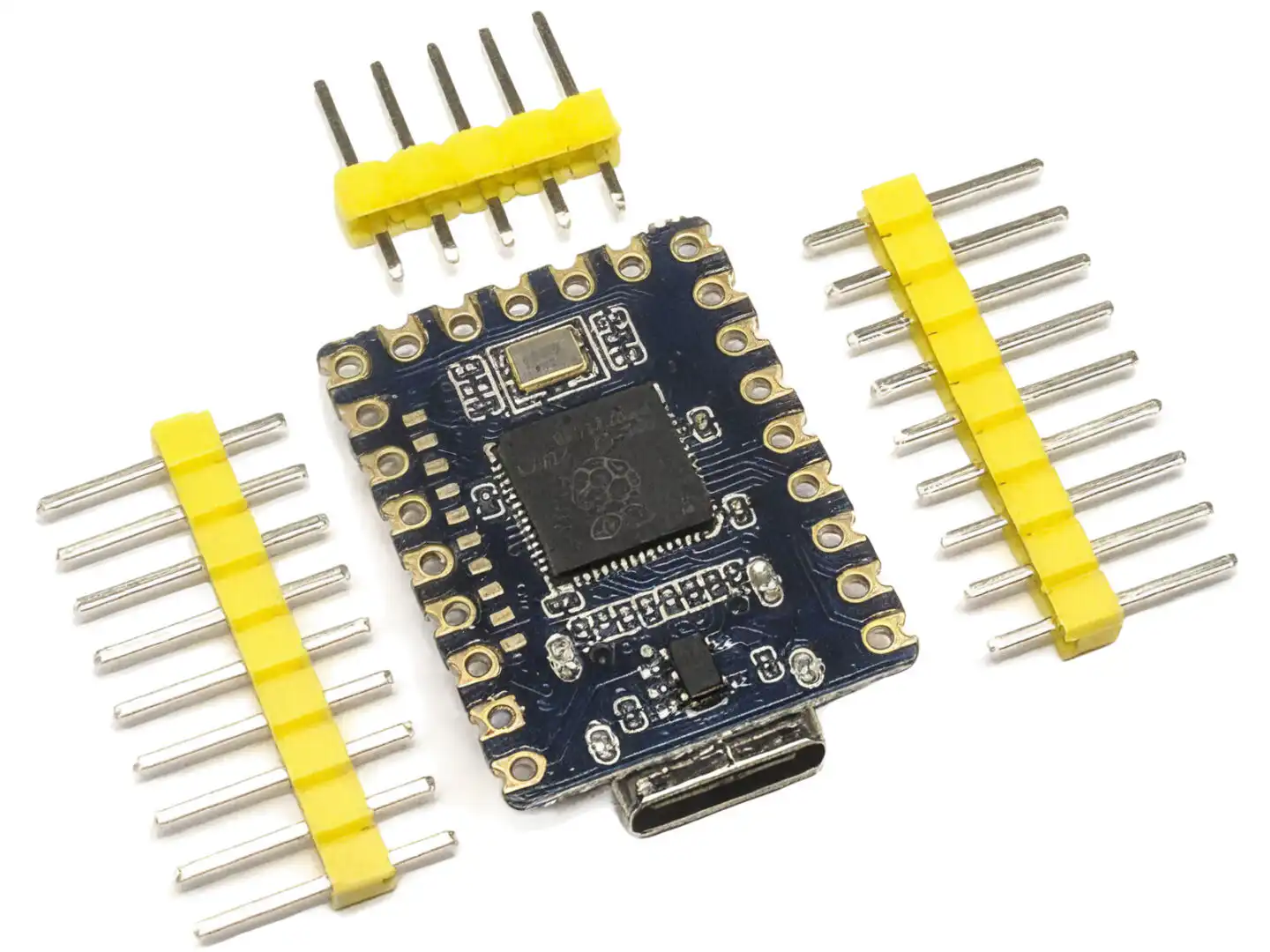

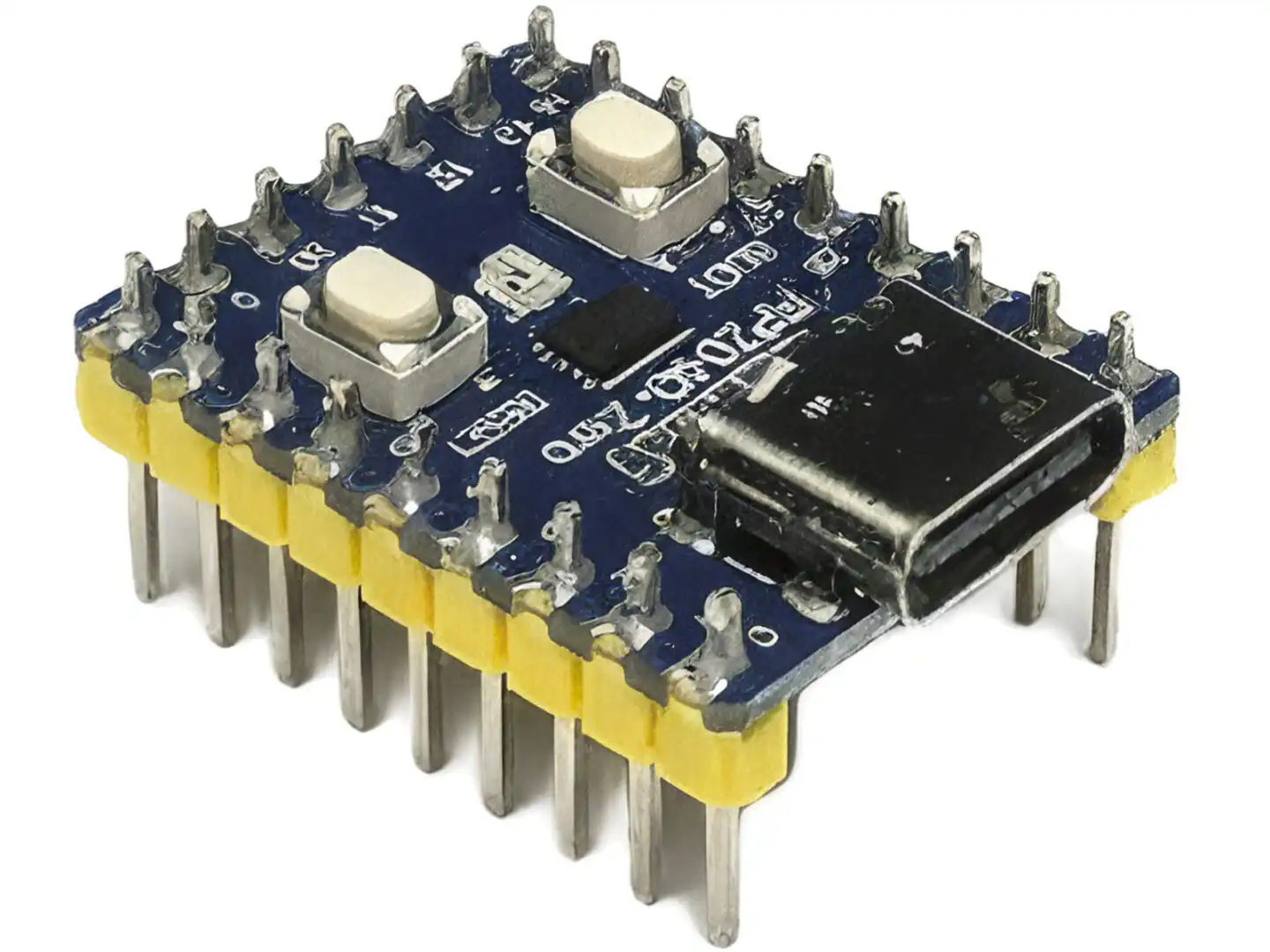

RP2040 Zero – Compatible with Raspberry Pi Pico

0 out of 5

C$9.95

Need more? Ask for a quote.

Availability: In stock SKU: 26678
Quantity 3 - 9 C$9.20
Quantity 10 - 24 C$8.71
Quantity 25 + C$8.46
View cart

Description

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264KB of SRAM, and 2MB of on-board Flash memory
  • USB-C connector, keeps it up to date, easier to use
  • The castellated module allows soldering directly to carrier boards
  • USB 1.1 with device and host support
  • Low-power sleep and dormant modes
  • Drag-and-drop programming using mass storage over USB

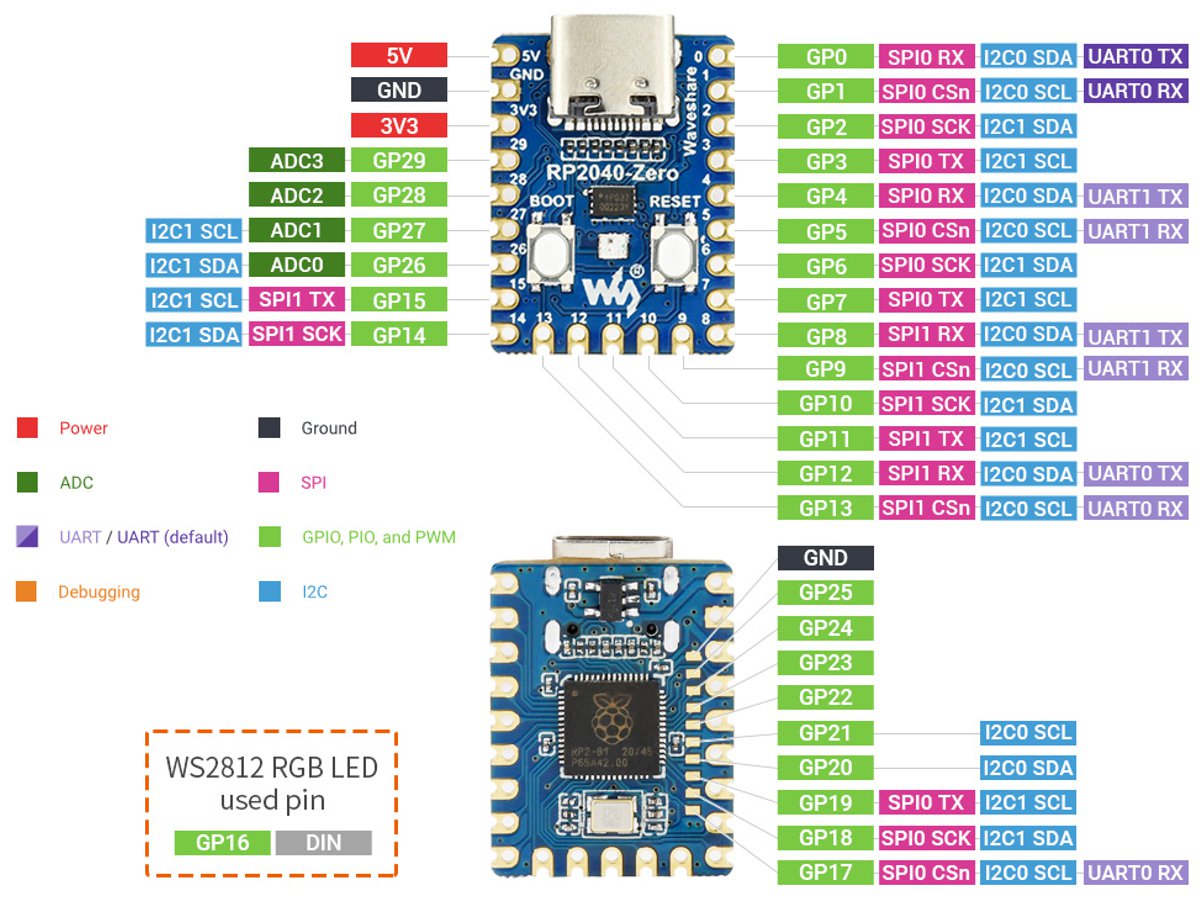

  • 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
  • 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating-point libraries on-chip
  • 8 × Programmable I/O (PIO) state machines for custom peripheral support

Please see the Wiki on Waveshare website for setup and programming.

Additional information

EAN

4260474036783

Brand

CANADUINO

Manufacturer

UNIVERSAL-SOLDER
