ESP8266 MicroPython Development Module
26868 ESP8266 MicroPython development module 2
26868 ESP8266 MicroPython development module 1
26868 ESP8266 MicroPython development module 3
26868 ESP8266 MicroPython development module 4

ESP8266 MicroPython Development Module

Screw Terminal Adapter for ESP32 and ESP8266 IoT Modules Screw Terminal Adapter for ESP32 and ESP8266 IoT Modules
ESP32-C3 Super Mini ESP32-C3 Super Mini Development Module 4MB
0 out of 5

CAD 9.95

Need more than we have? Order now, we will ship when back in stock. Lead time about 2-3 weeks.
See our backorder policy.
Availability: In stock (can be backordered) SKU: 26868
Quantity 3 - 9 CAD 8.96
Quantity 10 - 24 CAD 8.71
Quantity 25 + CAD 8.46

Description

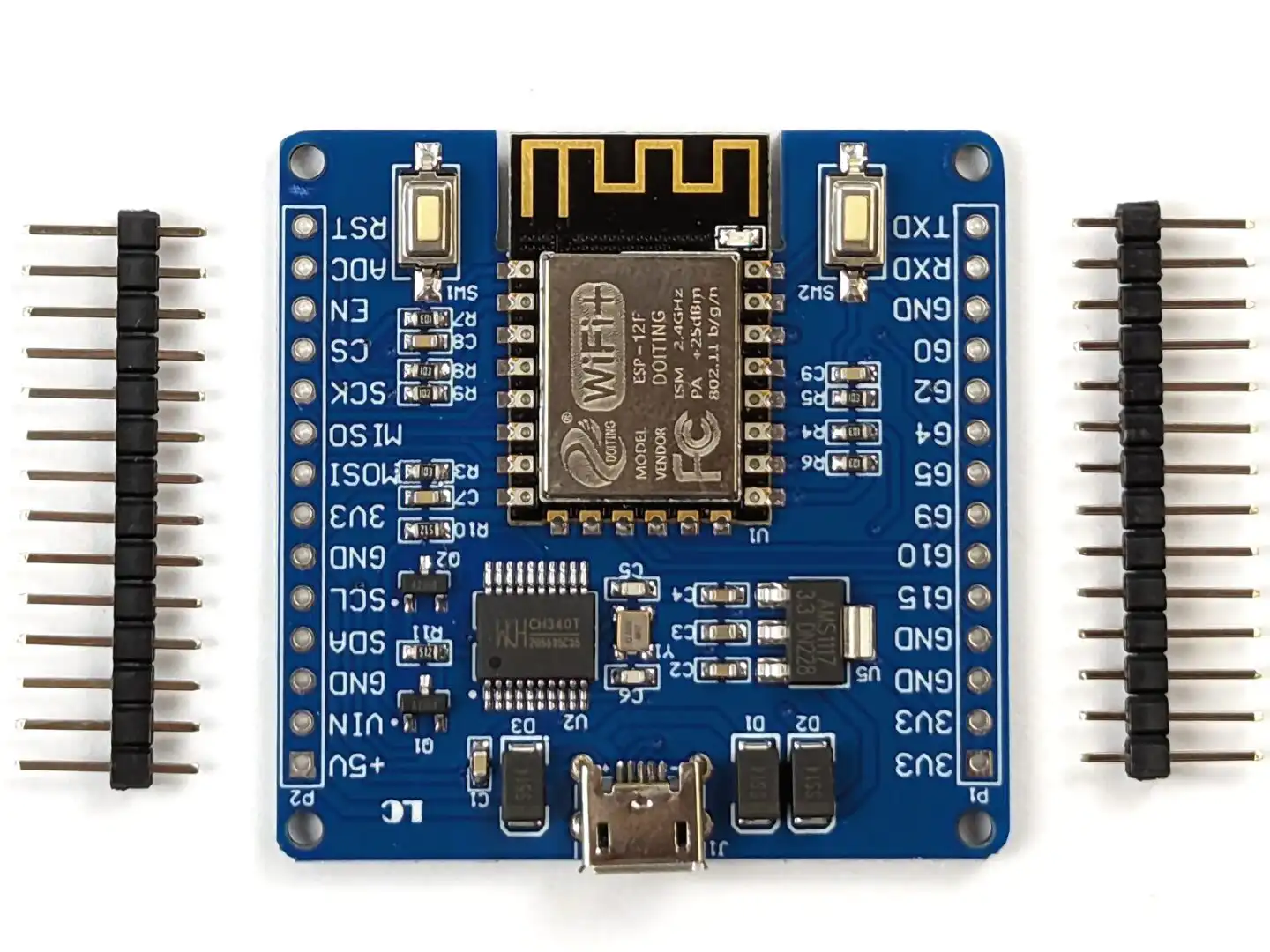

The ESP8266 MicroPython Development Module is with its dimensions of 45 x 45mm larger than your typical ESP8266 module, but it also breaks out every available pin of the ESP-12F SoC.

It provides USB connection through a CH340T UART interface chip, together with an auto-reset circuit for easy programming.

The on-board AMS1117 3.3V voltage regulator allows for supply voltages in the range of 4.6 to 12V (max. 18V) and sufficient output current of more than 500mA.

MicroPython firmware is already loaded.
